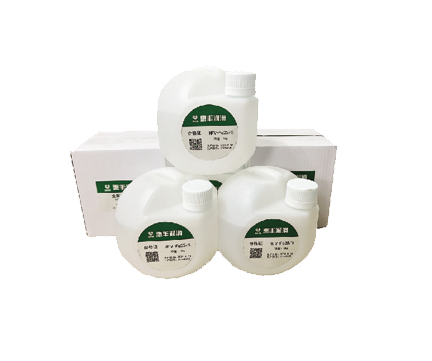

Model: HFV-F Series PFPE Vacuum Pump Oil
Describe: Low saturated vapor pressure; good chemical inertness; high thermal stability; good lubricity; good wear resistance.
Introduction: It is used in semiconductor, photovoltaic, aerospace, space research, chemical, pharmaceutical, display manufacturing and other fields.
Package: 1 kg/barrel, 5 kg/barrel
HFV-F series perfluoropolyether (PFPE) synthetic materials are based on perfluoropolyether vacuum pump oils specially designed for high vacuum environments. Perfluoropolyether vacuum pump oils have stable saturated molecular chains, do not contain carbon elements
and hydrogen elements, and have very stable chemical properties. It has strong anti-oxidation properties, is incompatible with oxygen, is non-flammable, and is resistant to strong acids, strong alkalis, strong radiation and other chemicals. It has stable high temperature resistance and has extremely low evaporation loss
and good lubrication properties. It not only has a long service life, but is also safe to use.
HFV-F series is base on PFPE synthetic material, specifically designed for high vacuum environments. PFPE vacuum pump oil features stable, saturated
molecular chains and free from carbon and hydrogen elements. Extremely stable of chemical properties. It boasts strong oxidation resistance, incompatible
with oxygen, non-flammable, resistant to strong acids, strong bases and strong radiation. It maintains stability at high temperatures, exhibits very low evap-
oration loss and possesses excellent lubricity. Not only have a long service life but also safety to use.
※ Low saturated vapor pressure; good chemical inertness; high thermal stability; good lubricity; good wear resistance.
※ No flash point, no ignition point; safe and non-toxic; good compatibility with metals, plastics, and elastomers.
※ Excellent water resistance; low surface tension; good radiation stability.
※ Low vapor pressure;Good chemical inertness;High thermal stability;Good lubricity;Good anti-wear ability.
※ No flash point, no fire point;Safety no toxicity;Excellent compatibility with metals, plastics,elastomers.
※ Good anti-aqueous solvent resistance;Low surface tension;Good radiation stability.
※ HFV-F series perfluoropolyether vacuum pump oil is used in semiconductor, photovoltaic, aerospace, space research, chemical, pharmaceutical, display manufacturing and other fields.
※ HFV-F series PFPE vacuum pump oil application use in semiconductor, solar system, aerospace, space research,
chemicals, pharmaceutical, monitor manufacture and vacuum area.
Test item | 06/6 | 14/6 | 16/6 | 25/6 |
Average molecular weight amu | 1800 | 2500 | 2700 | 3300 |
Density@20℃ g/cm³ Density | 1.88 | 1.89 | 1.89 | 1.90 |
Kinematic viscosity@20℃
cst Kinematic viscosity | 64 | 148 | 168 | 276 |
Viscosity index Viscosity index | 71 | 97 | 110 | 110 |
Saturated vapor pressure Torr Vapor pressure | ||||
@25℃ | 8×10-7 | 1×10-7 | 2×10-6 | 6×10-8 |
@100℃ | 8×10-3 | 2×10-4 | 2×10-4 | 6×10-5 |
Pour point ℃ Pour point | -50 | -45 | -45 | -33 |
Surface tension Dyne/cm Surface tension | twenty one | twenty two | twenty two | twenty two |
Evaporation loss % wt Evaporation loss 22hrs 06/6@120℃ 14/6 16/6 25/6 @149℃ | 2.8 | 2.6 | 3.9 | 6.0 |
Storage and shelf life:
Store indoors, avoid light and keep in a dry place.
The shelf life of the product is 3-5 years if it is unopened.
Storage and warranty:
Indoor storage, require avoid light and dry place.
Situation in not open ,warranty 3-5 years.
