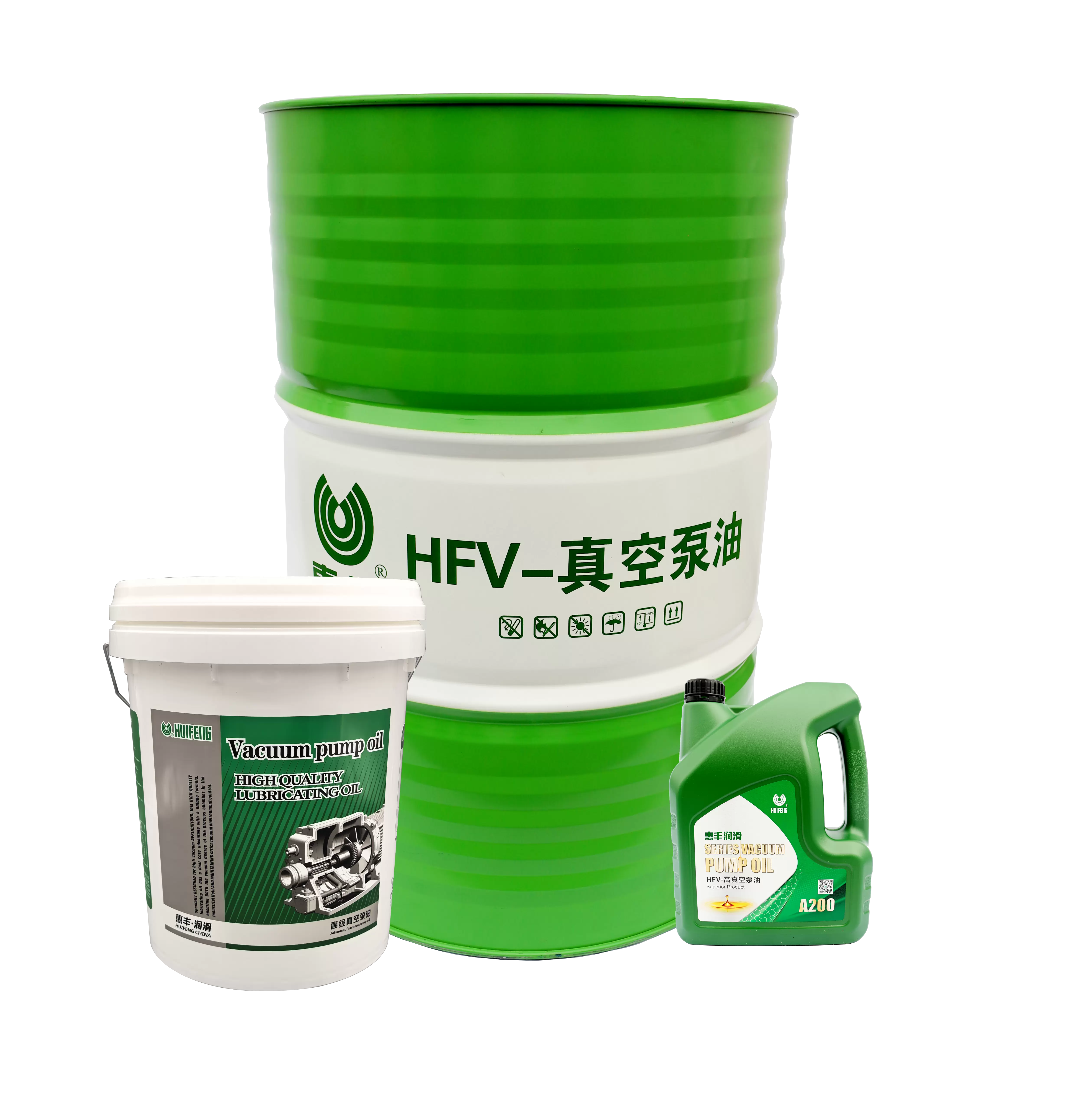

HFV-A High Vacuum Oil

Model: HFV-A100、A200、A250

Describe: The product's anti-wear performance is significantly improved, which can reduce interface wear during pump compression.

Introduction: It is suitable for more demanding working conditions and can maintain a good vacuum state under high temperature, high pressure or high load conditions.

Package: 3.5kg/can, 4 cans/box, 13.5kg/barrel, 170kg/barrel

Send Email Contact Us Online Orders

Product Details
Performance
Application
Typical Data
Related Products

Product Details

The vacuum oil produced by Huifeng Enterprise is made of high-quality base oil and imported additives. It is an ideal lubricating material and is widely used in my country's military enterprises, display industry, lighting industry, solar energy industry, coating industry, refrigeration industry, aerospace, etc.

Performance

※ HFV-A high vacuum oil has a wider operating temperature range than M high vacuum oil.

※ The product's anti-wear performance is significantly improved, which can reduce the interface wear during pump compression.

※ Good foaming properties can reduce the wear of vacuum pumps caused by overflow and interruption.

※ HFV-A high vacuum pump oil greatly extends the service life of the pump and allows the vacuum pump to maintain high vacuum operation for a long time.

※ HFV-A high vacuum oil has wider temperature range compared to the M.

※ Better anti-wear ability to reduce interface wear when compressing.

※ Superior oxidation stability to effectively extend the oil-change intervals.

※ Desirable foam characteristics to reduce wear due to overflow and interruption of work fluid.

※ HFV-A high vacuum oil keeps pump running at high vacuum degree,with a much longer service life

Application

※ HFV-A high vacuum oil is suitable for harsh working conditions and can maintain good vacuum degree under high temperature, high pressure or high load conditions.

※ It can be applied to various domestic and foreign vacuum pumps such as the British Edwards, German Leybold, French Alcatel and Japanese Ulvoil.

※ Applicable to poor working conditions and keeping good vacuum degree under conditions of high pressure or high loading.

※ Can be applied to various domestic and foreign vacuum pumps such as the British Edwards, German Leybold, French Alcatel and Japanese Ulvoil.

Typical Data

Item/Grade Item/Grade	HFV-A100	HFV-A200	HFV-A250	Test method Method
Kinematic viscosity (40℃), mm²/s Kinematic viscosity	41.4~50.6	61.2~74.8	90~110	GB/T265
Viscosity index ≥ Viscosity index	110	110	110	GB/T2541
Flash point (open cup), ℃≥ Flash point (open cup)	230	240	250	GB/T3536
Pour point, ℃≤ Pour point	-20	-20	-15	GB/T3535
Oxidation stability@150℃, min ≥ Oxidation stability	600	600	600	SH/T0193
Demulsibility (40-40-0) ml, min Demulsibility 54℃≤ 82℃≤	10 —	10 —	— 10	GB/T7305
Foam characteristic (ml/ml) Foam characteristic (Foam tendency/stability) (Foam tendency/stability) 24℃≤ 93.5℃≤ Later24℃≤ Later	50/0 50/0 50/0	50/0 50/0 50/0	50/0 50/0 50/0	GB/T12579
Extreme pressure, kpa Extreme pressure Partial pressure ≤ Differential pressureur Total pressure ≤ Total pressure	2.0×10^-5 2.0×10^-4	2.0×10^-5 2.0×10^-4	2.0×10^-5 2.0×10^-4	GB/T6306.2

Note: The extreme pressure must use a double-stage and double-excellent vacuum pump as the test pump.
use double-stage and double-excellent vacuum pump as extreme pressure test pump.

The data above values of typical samples only. Product properties should refer to actual measurement.
